Diagnosing Feline Hyperthyroidism

Jeremy Nix, DVM Candidate, University of Tennessee

Shelly J. Olin, DVM, DACVIM (SAIM), University of Tennessee

ArticleLast Updated October 20165 min readPeer Reviewed
Print/View PDF
featured image

What tests should I use, and in what order, to diagnose a cat with suspected hyperthyroidism?

Hyperthyroidism is the most common endocrine disease affecting cats, particularly cats >8 years of age. Hyperthyroidism should be suspected in cats of this age presented for weight loss with normal-to-increased appetite, polyuria/polydipsia, hyperactivity, poor hair coat (Figure 1), or GI signs (eg, vomiting, diarrhea).1-3 Up to 26% of hyperthyroid cats have an apathetic presentation that includes anorexia and lethargy.4,5

featured image
Figure 1

Unkempt hair coat of a hyperthyroid cat. Photo courtesy of Jacqueline Whittemore, DVM, PhD, DACVIM, University of Tennessee

On examination, up to 90% of hyperthyroid cats have a palpable thyroid goiter (Figure 2).2 These cats should be closely monitored for development of hyperthyroidism.1,3,6-10 A minimum database (ie, CBC, serum chemistry profile, urinalysis, blood pressure, total thyroxine [tT4]) is recommended. The most common laboratory abnormalities in cats with hyperthyroidism include mildly-to-moderately increased alkaline phosphatase and/or alanine transferase activity, mild polycythemia, and proteinuria (Figure 3).2,11

featured image
Figure 2

Palpation of a thyroid slip. Photo courtesy of Greg Hirshoren, University of Tennessee

Initial Hormone Testing

If hyperthyroidism is suspected, a serum tT4 assay is recommended as the first-line diagnostic test.8 Increased tT4 is diagnostic for hyperthyroidism in cats with consistent clinical signs.2,3,6-10,12-16 Various assays can be used to measure tT4, but radioimmunoassay is considered the best. In one study of 50 cats, the point-of-care enzyme-linked immunosorbent assay (ELISA) consistently overestimated tT4 as compared with radioimmunoassay.13 Thus, ELISA results should be interpreted with caution and confirmed via another method.8,12-14

featured image

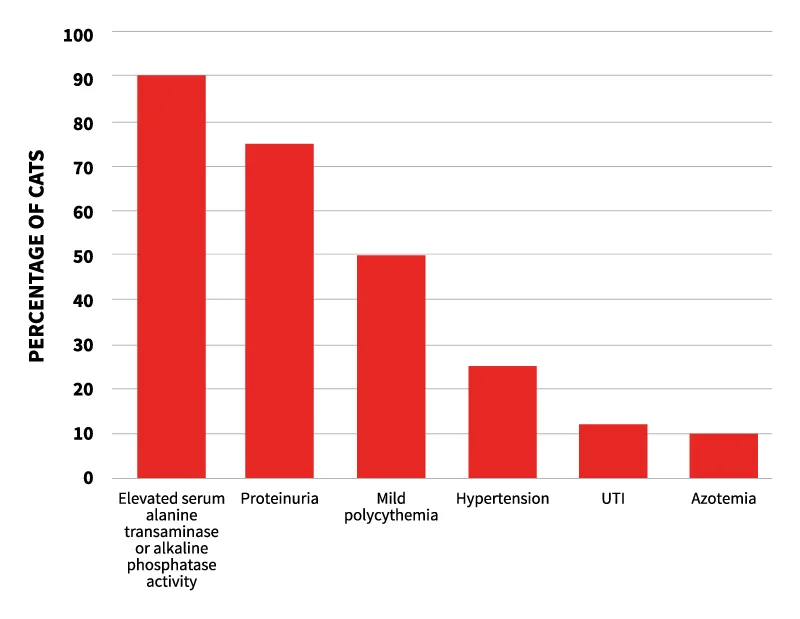

Figure 3

Percentage of hyperthyroid cats with abnormal minimum database findings at the time of diagnosis11

For most hyperthyroid cats, tT4 measurement is sufficient for diagnosis. Difficulty can arise when a cat has clinical signs consistent with hyperthyroidism but tT4 is in the upper one-third of the reference range. About 10% of hyperthyroid cats have tT4 within the normal reference interval at the time of testing. This can occur in cats with early or mild disease or with a nonthyroidal illness that causes a decrease in serum tT4.1,2,7-10,13-19 Additionally, certain drugs (eg, thioureylene drugs, iodinated contrast agents, glucocorticoids19) can cause tT4 to be falsely lowered into the normal range.

Limited information exists about what other drugs affect thyroid function in cats. Most medications affecting the thyroid axis in dogs are assumed to have similar effects in cats.11,20 If hyperthyroidism is suspected despite normal tT4, tT4 can be reassessed 2 weeks later. If possible, nonthyroidal illnesses should be treated during this time. In many hyperthyroid cats, the second test will detect increased tT4.8-10

Other diagnostic options include measurement of free thyroxine (fT4) or thyroid-stimulating hormone (TSH), a triiodothyronine (T3; liothyronine) suppression test, or thyroid scintigraphy.2,13,16,19 Other possible tests include thyrotropin-releasing hormone or a TSH-stimulation test; however, no feline-specific thyrotropin-releasing hormone or TSH assay is available.8,10,15,16,18

Additional Hormone Testing

Because fT4 is more sensitive and less specific than tT4 for diagnosing feline hyperthyroidism,8,17 more results may be false-positive when screening for fT4 alone.15,17 Therefore, fT4 measurement should be performed only in cats with clinical signs of hyperthyroidism and an inconclusive tT4 measurement.8,15-17 fT4 should not be used alone as a screening test. The combination of increased fT4 and tT4 in the upper one-third of the reference range with compatible clinical signs suggests hyperthyroidism. However, a recent study found that 20% of cats with increased fT4 were euthyroid as determined by thyroid scintigraphy.15

Concurrent measurement of fT4 and TSH is helpful, especially in cats with equivocal tT4; to date, however, only a canine TSH assay has been evaluated in cats, and most hyperthyroid cats have TSH levels below the assay detection threshold.15 Findings of suppressed TSH in combination with increased fT4 and tT4 in the upper one-third of the reference range are consistent with early hyperthyroidism. Of note, up to 2% of hyperthyroid cats may have normal TSH from incomplete suppression, and ≈30% of elderly euthyroid cats have undetectable TSH.8,15,21 Consequently, the canine TSH assay cannot distinguish low-normal TSH in euthyroid cats from truly low TSH in hyperthyroid cats. Like fT4, TSH test results should be interpreted in combination with other test results, and the TSH tests should not be the sole screening test used.

The T3 suppression test can be expensive and may have limited availability in some countries.2,7-9,15,16 To conduct this test, T3 is given orally q8h for 3 days, then both T3 and tT4 are measured. In a euthyroid cat, tT4 will decrease as a consequence of negative feedback from T3 administration, whereas a hyperthyroid cat’s tT4 will not.9,15,16 This test is generally reliable if T3 is administered properly, but practical difficulties can arise when owners attempt to give multiple oral doses over several days. Poor compliance with T3 dosing can lead to euthyroid cats with tT4 results similar to those of hyperthyroid cats and an incorrect diagnosis. Therefore, it is important to assess owner compliance by measuring T3 along with tT4.9,15,16

Thyroid Scintigraphy

In patients in which hyperthyroidism is suspected but hormone testing is inconclusive, thyroid scintigraphy, the standard for diagnosing hyperthyroidism, should be considered.6-8,15,22-24 In scintigraphy, the thyroid gland takes up the radioactive marker technetium 99m pertechnetate, just as it would iodine, and allows for imaging of active thyroid tissue. Results are assessed by comparing the uptake of pertechnetate between the thyroid and salivary glands. In a hyperthyroid animal, uptake by the thyroid glands is noticeably higher than uptake by the salivary glands.6,21,25

Thyroid neoplasia and ectopic thyroid tissue may also be identified via scintigraphy. Although technetium 99 is a safe isotope by the standards of radioactive substances, it requires special facilities and licensing.8,15 Therefore, thyroid scintigraphy is only available at some referral practices.


Feline hyperthyroidism should be suspected based on history, clinical signs, and physical examination findings. The initial diagnostic plan calls for a minimum database (ie, CBC, serum chemistry profile, urinalysis, blood pressure, tT4). Increased tT4 in combination with clinical signs is diagnostic for hyperthyroidism. If hyperthyroidism is suspected but tT4 is in the upper one-third of the reference range, options include repeating tT4 in several weeks, measuring fT4 and TSH, performing a T3 suppression test, or referring for thyroid scintigraphy.

ELISA = enzyme-linked immunosorbent assay, fT4 = free thyroxine, T3 = triiodothyronine (liothyronine), TSH = thyroid-stimulating hormone, tT4 = total thyroxine
